RM3 has the reinforced rigidity by increasing the insert thickness to be available under tough cutting conditions. Stronger clamping system is possible with 3-face clamping seats, side negative clamping and more than twice wider flat bottom seat. This results in stability in high speed and high feed machining under tough conditions of 0.3~0.5mm/tooth without any damage on tools, with 200% increased productivity than current tool for the right angle cutting.
Not only that, RM3 is a multi functional tool for ramping, helical, and plunging as well as shouldering. So it is unnecessary to replace each tool for each cutting which gives our customers better economic benefits.
The insert features high rake angle of 20° on chip breaker and high rake cutting edge of 13°, which reduces cutting loads more than 20%. The 2-step clearance also ensures perfect perpendicularity to the tolerance of right angle, 30㎛ at high speed and high feed.
Our line up has a wide range of grades for various work pieces. PVD coated PC5300 is ideal for general cutting, PC3600 for steel and PC6510 for cast iron. In interrupted cutting or machining tough materials, PC5400 performs the best with its high toughness and lubrication.
With all these traits, RM3 is the leading milling tool for the market.

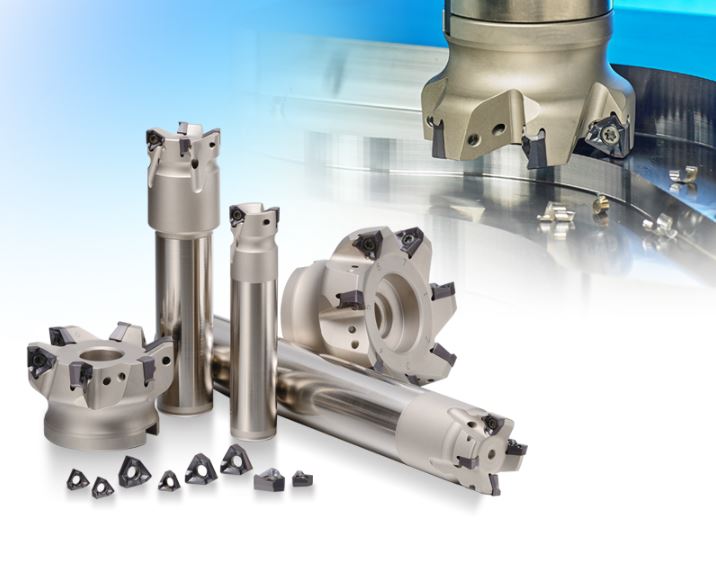

[RM3] the Multifunctional shouldering tool, RM3
